General Purpose Through Hole Relay 24VDC Coil G9KB-1A DC24 SPST-NO

Name: General Purpose Through Hole Relay 24VDC Coil G9KB1A DC24 SPSTNO
Brand: Omron Electronics
Price: 1 USD

Brand Name : Omron Electronics

Model Number : G9KB-1A DC24

MOQ : 50pcs

Price : Negotiable

Supply Ability : 1000000pcs

Contact Form : SPST-NO (1 Form A)

Contact Rating (Current) : 50 A

Switching Voltage : 600VDC - Max

Coil Current : 116.5 mA

Must Operate Voltage : 18 VDC

Operating Temperature : -40°C ~ 85°C

Contact Now

G9KB-1A DC24 General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole

Omron Electronics G9KB High-Voltage Switching Relays

Omron Electronics G9KB High-Voltage Switching Relays are high-power DC PCB relays with bidirectional 600VDC capacity and 50A switching. The Omron Electronics G9KB PCB Relays feature low contact resistance and low coil power consumption. The series features a +85°C ambient temperature and 12VDC or 24VDC rated coil voltage. Applications include DC household and commercial appliances, energy storage systems, and the energy industry.

FEATURES

High-power PCB relay
Achieves 600VDC capacity, 50A switching, and bidirectional opening and closing
Low contact resistance and low coil power consumption
+85°C ambient temperature

3.6mm or more contact gap
12VDC or 24VDC rated coil voltage
≤5mΩ initial contact resistance
UL 60947-4-1 and EN 61810-10-certified (required for ESS switching devices)

APPLICATIONS

Energy storage systems
Energy industry

Vehicle-to-everything (V2X)
DC household and commercial appliances

CAE TECHNOLOGY

General Purpose Through Hole Relay 24VDC Coil G9KB-1A DC24 SPST-NO

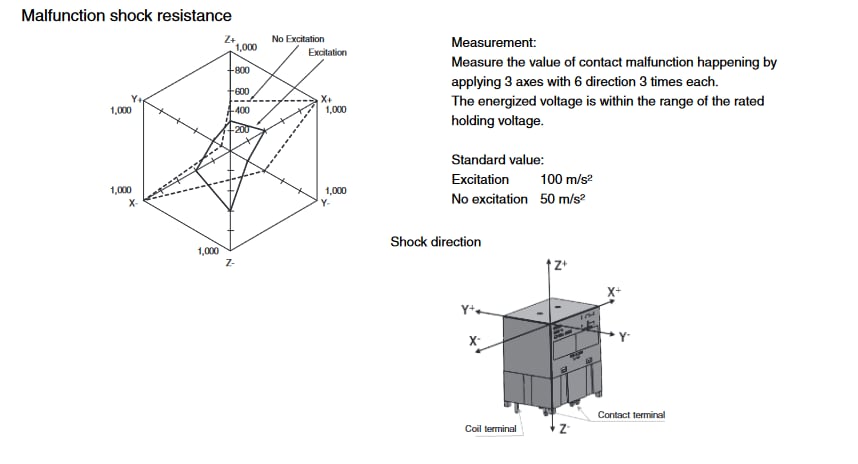

MALFUNCTION RESISTANCE
